List of useful Flask extensions

Flask App Builder
Flask SQL Alchemy
Flask Admin
Flask Monitoring Dashboard

1. Flask App Builder

Flask App Builder is development framework, built on top of Flask. Includes flask, flask-sqlalchemy, flask-login, flask-openid, flask-wtform, flask-babel Read

Step 1: Install flask-appbuilder
- pip install flask-appbuilder
Step 2: Create your application
- export FLASK_APP=app
- flask fab create-app

<your_app_name>

├─ app
│  ├─ templates
│  │  └─ 404.html
│  ├─ transalations
│  ├─ __init__.py
│  ├─ model.py
│  └─ views.py
├─ babel
├─ app.db
├─ config.py
├─ README.rst
└─ run.py

Step 3: Create admin account
- cd <your_app_name>
- flask fab create-admin
Step 4: Run your app
- flask run

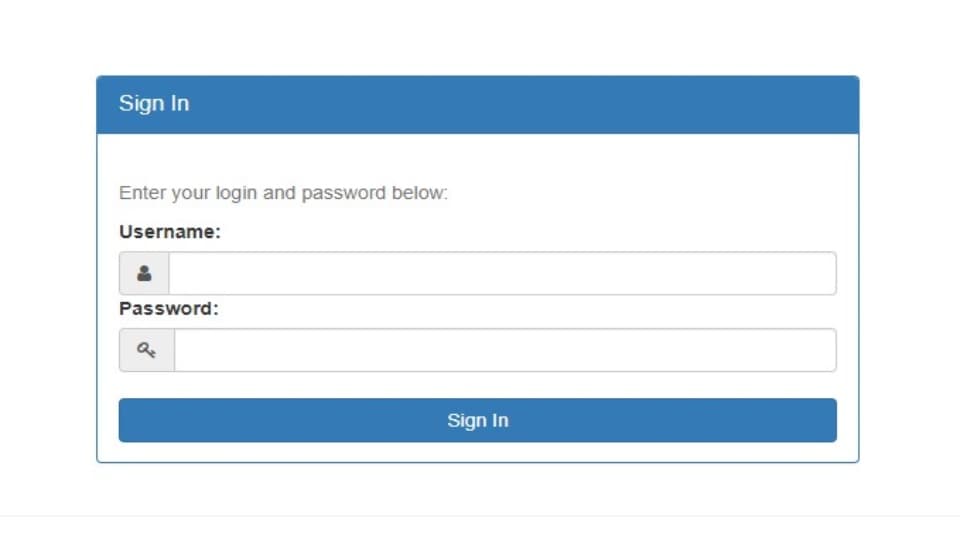

- The application will show you with simple login page as figure below

2. Flask SqlAclchemy

Flask-SQLAlchemy is an extension for Flask that adds support for SQLAlchemy to your application Read

Install pip install -U Flask-SQLAlchemy

main.py

import names
from flask import Flask, request, jsonify, render_template
from flask_sqlalchemy import SQLAlchemy
app = Flask(__name__)
app.config['SECRET_KEY'] = "SetSecretHere"
app.config['SQLALCHEMY_DATABASE_URI'] = 'sqlite:///data.db'
db = SQLAlchemy(app)

# Create Model
class User(db.Model):
    id = db.Column(db.Integer, primary_key=True)
    username = db.Column(db.String(80), unique=True, nullable=False)
    email = db.Column(db.String(120), unique=True, nullable=False)

    def __repr__(self):
        return '<User %r>' % self.username

db.create_all()

# Add Admin
@app.route('/')
def index():
    username = names.get_first_name()
    user = User(username=username, email=f'{username}@example.com')
    db.session.add(user)
    db.session.commit()
    return jsonify({"msg", "added", "username": username})

if __name__ == "__main__":
    app.run(debug=True, host='0.0.0.0', port=5000)

3. Flask Admin

Flask-Admin build an admin interface on top of an existing data model.

install pip install Flask-Admin
Flask admin path /admin

main.py

from flask import Flask, request, jsonify, render_template
from flask_admin import Admin
from flask_sqlalchemy import SQLAlchemy
app = Flask(__name__)

# Flask Sqlalchemy
app.config['SECRET_KEY'] = "SetSecretHere"
app.config['SQLALCHEMY_DATABASE_URI'] = 'sqlite:///data.db'
db = SQLAlchemy(app)

class User(db.Model):
    id = db.Column(db.Integer, primary_key=True)
    username = db.Column(db.String(80), unique=True, nullable=False)
    email = db.Column(db.String(120), unique=True, nullable=False)

    def __repr__(self):
        return '<User %r>' % self.username

db.create_all()

# Flask Admin
app.config['FLASK_ADMIN_SWATCH'] = 'slate'
admin = Admin(app, name='Admin', template_mode='bootstrap4')
admin.add_view(ModelView(User, db.session))

@app.route('/')
def index():
    return render_template("index.html")

if __name__ == "__main__":
    app.run(debug=True, host='0.0.0.0', port=5000)

4. Flask Monitoring Dashboard

Flask Monitoring Dashboard allows you to see which endpoints process a lot of requests and how fast
install pip install Flask-MonitoringDashboard
Flask monitoring dashboard path /dashboard

main.py

from flask import Flask, request, jsonify, render_template
import flask_monitoringdashboard as dashboard
app = Flask(__name__)
# Flask Mornitoring Dashboard
dashboard.config.init_from(file=r'config.cfg')
dashboard.bind(app)

@app.route('/')
def index():
    return render_template("index.html")

if __name__ == "__main__":
    app.run(debug=True, host='0.0.0.0', port=5000)

config.cfg

[dashboard]
APP_VERSION=1.0
GIT=/<path to your project>/.git/
CUSTOM_LINK=dashboard
MONITOR_LEVEL=0
OUTLIER_DETECTION_CONSTANT=2.5
SAMPLING_PERIOD=20
ENABLE_LOGGING=True
BRAND_NAME=Flask Monitoring Dashboard
TITLE_NAME=Flask-MonitoringDashboard
DESCRIPTION=Automatically monitor the evolving performance of Flask/Python web services
SHOW_LOGIN_BANNER=False
SHOW_LOGIN_FOOTER=False

[authentication]
USERNAME=admin
PASSWORD=admin
SECURITY_TOKEN=YourSecret

[database]
TABLE_PREFIX=fmd
DATABASE=sqlite:///dashboard.db

[visualization]
TIMEZONE=Asia/Bangkok
COLORS={'main':'[0,97,255]',
        'static':'[255,153,0]'}
